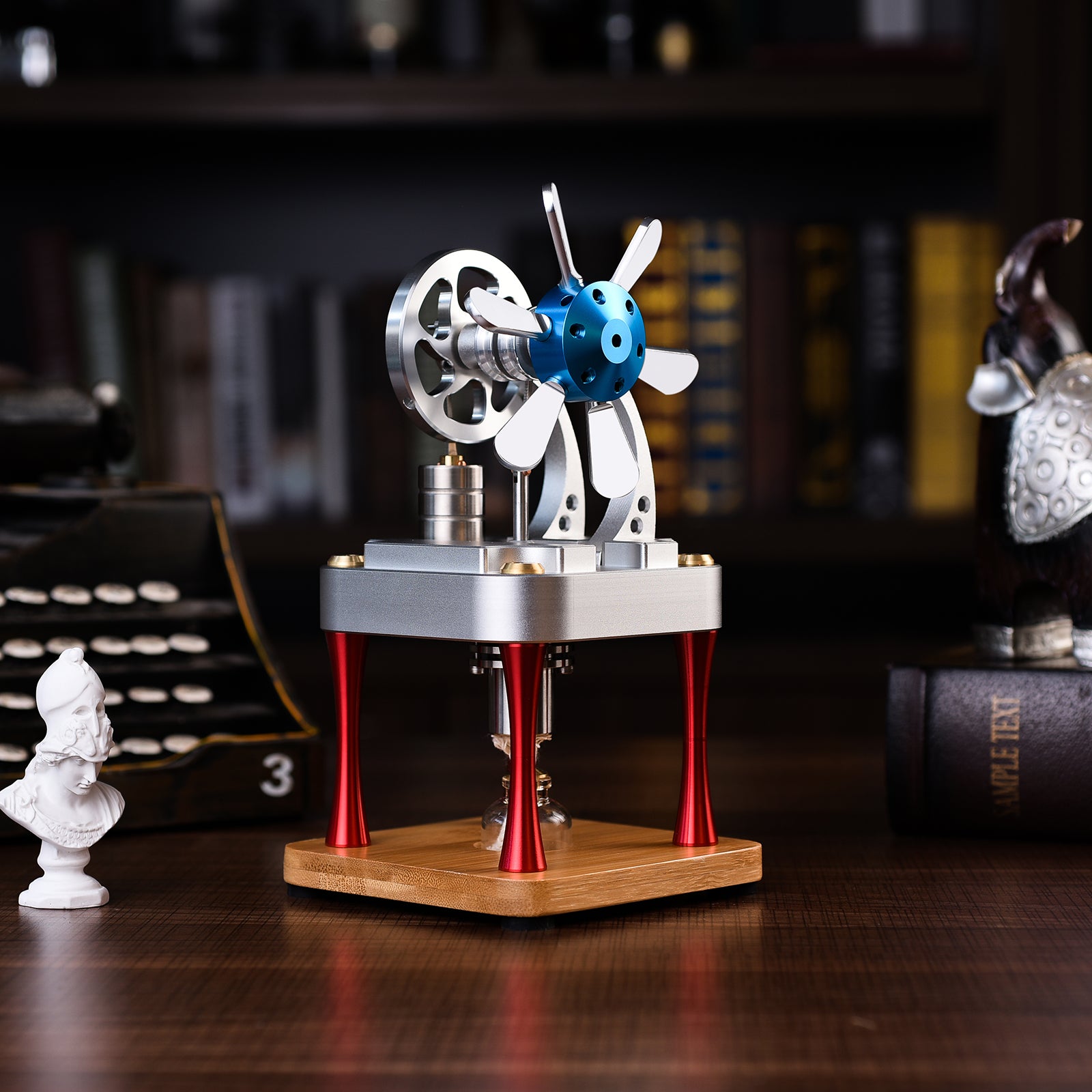

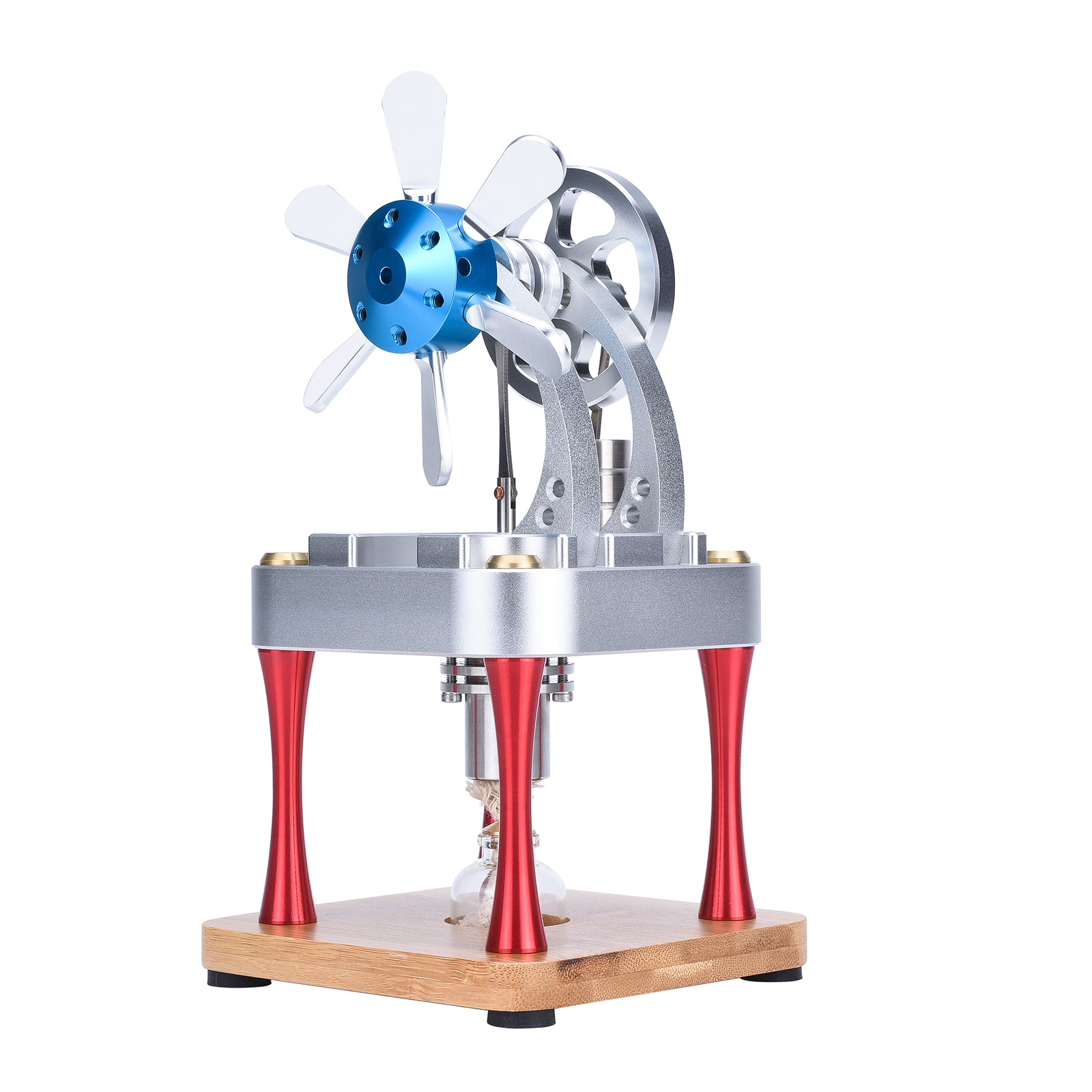

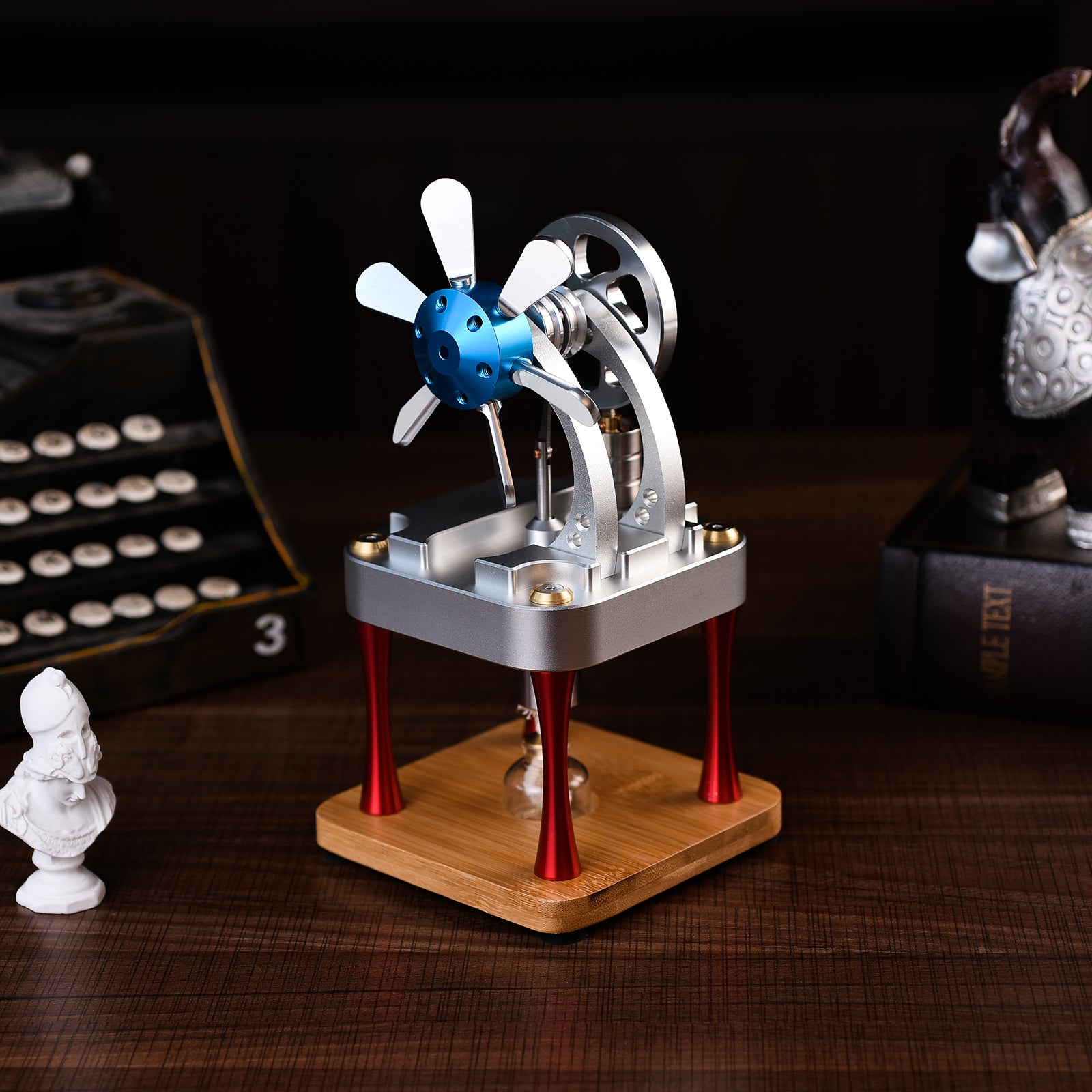

M16-CF High-Temperature Stirling Engine
The M16-CF is an advanced high-temperature Stirling engine designed to deliver exceptional performance for STEM education, DIY projects, and mechanical demonstrations. This model is engineered for efficiency, durability, and visual appeal, making it a standout choice for hobbyists and educators.
Key Features:
-
Enhanced Heat Dissipation:

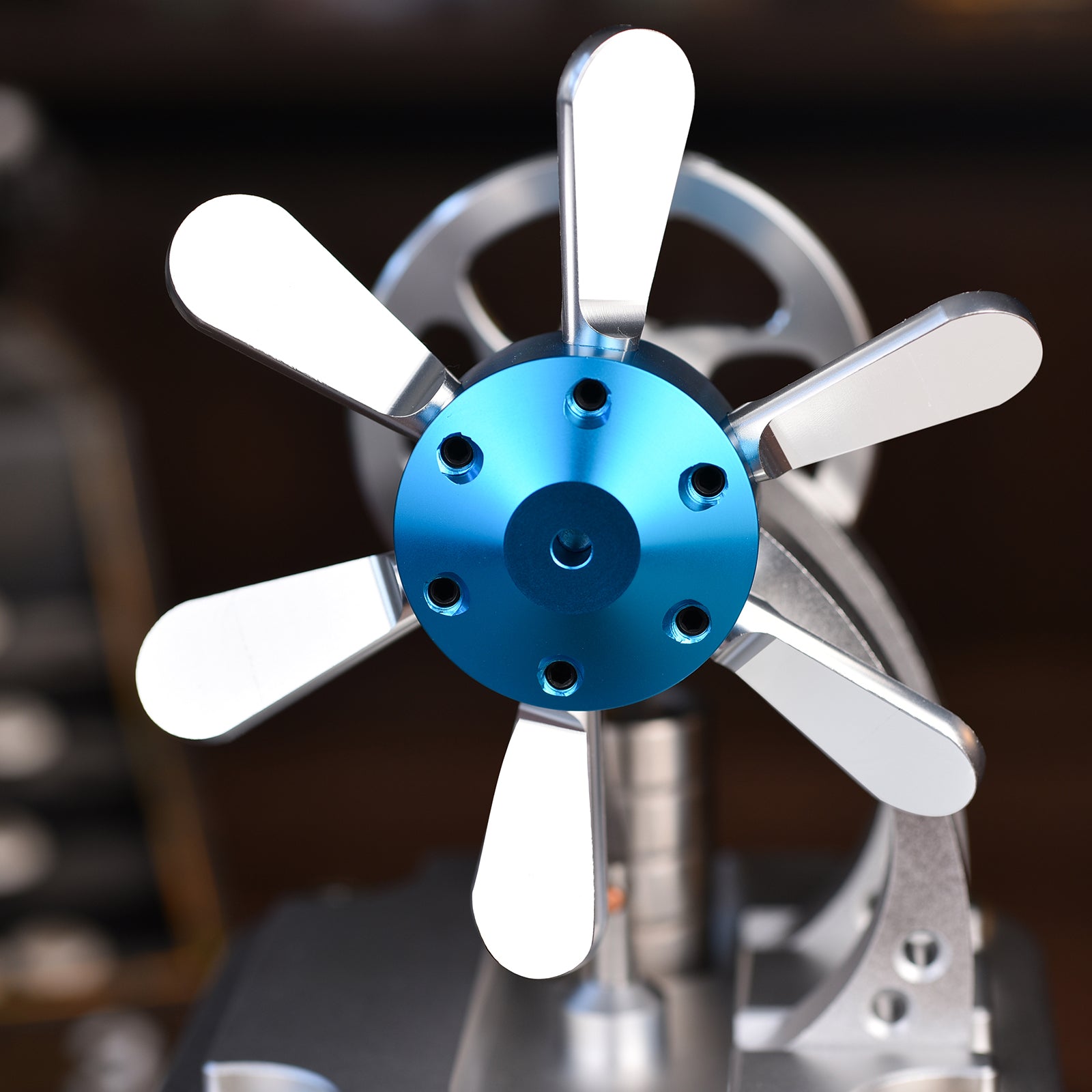

The dual support structure and 102mm aluminum fan improve heat transfer and air circulation, ensuring optimal cooling and stable high-temperature operation. -
Precision Engineering:
The SUJ alloy steel power cylinder achieves a precision tolerance of ±0.005mm with an HRC60° hardness, offering exceptional durability and performance. -
Premium Material Construction:

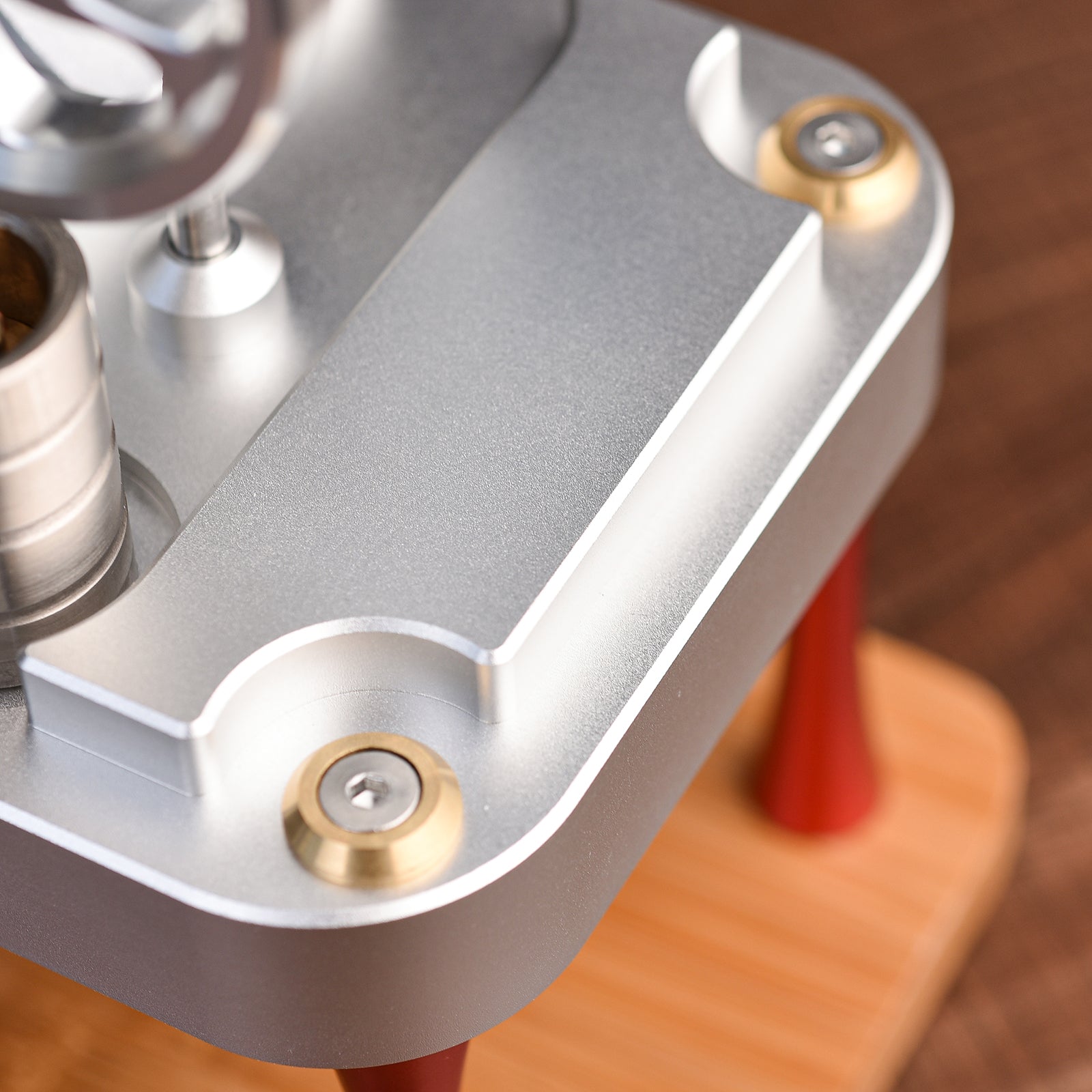

Built with 6061 aluminum alloy for the main frame, base, and flywheel, the M16-CF combines lightweight durability with excellent heat conduction. -
Smooth Operation:

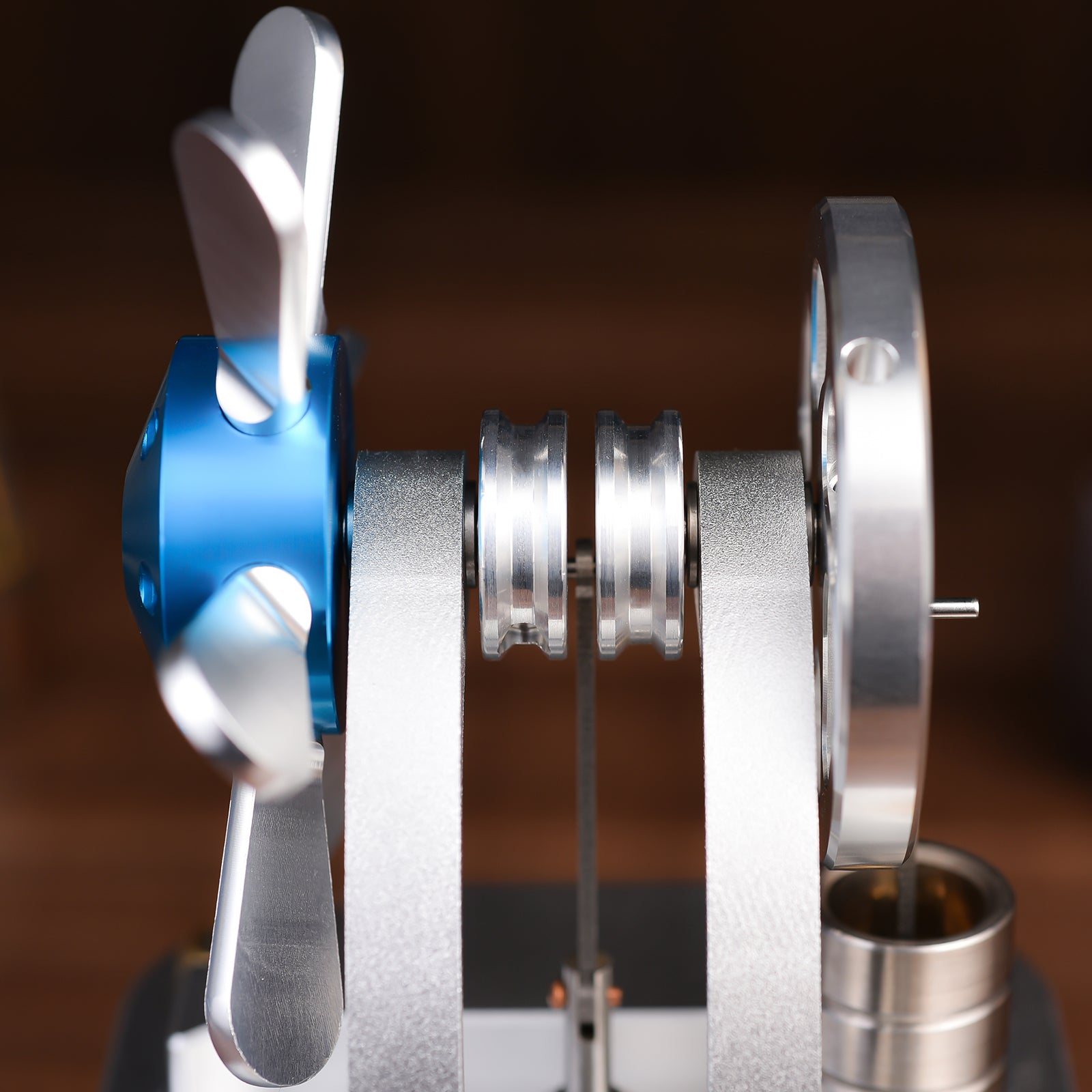

The 65mm aluminum alloy flywheel ensures smoother low-speed operation by increasing rotational inertia, contributing to its efficiency and stability.
Specifications:
- Dimensions: 105mm x 105mm x 218mm
- Net Weight: 0.97kg
- Gross Weight: 1.15kg
- Heat Plate Material: 6061 aluminum alloy

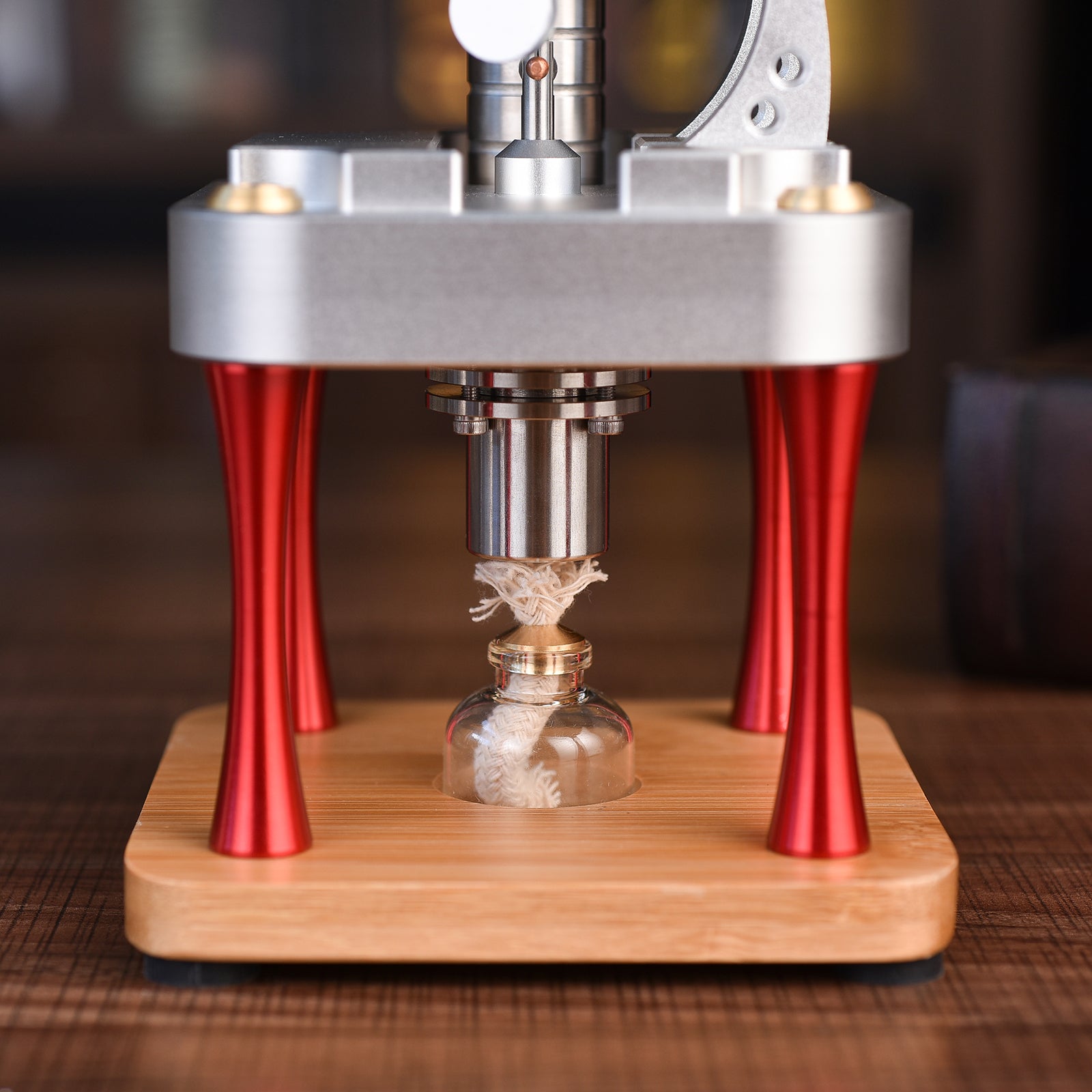

- Heating Method: Alcohol-based heating
- Fan Diameter: 102mm
- Power Cylinder Material: SUJ alloy steel
- Flywheel Diameter: 65mm
Applications:
- STEM education and mechanical demonstrations
- DIY enthusiasts and science experiments
- Heat energy principle teaching
- Collector’s display for mechanical models
